forall x such that x is a

∀ (x: ℕ) (P : ℕ -> Prop), P(x) ->

Why should we care about computer proofs?

Computation has deep connections to mathematics
Leveraging this, we can write proofs that are machine-checkable

Promising examples in math

Four Color Theorem (1976)

First major theorem proven primarily in a computer

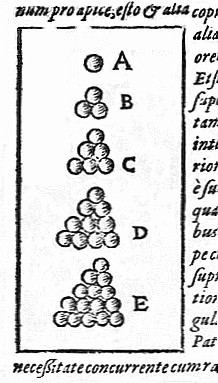

Kepler Conjecture (2014)

Solved after 400 years using computer-assisted proof

We can also write proofs about computer programs as mathematical artifacts

Promising examples in software

CompCert (2005)

Verified compiler for low-level software

seL4 (2009)

Verified operating system kernel

Project Everest (2016)

Verified encryption algorithm implementations

Obstacles

Computer-aided proofs can make writing proofs much easier in some cases
But they're still really hard!

Theorem of_intu_of_int_3:
forall x,
of_intu x = sub (of_int (Int.and x ox7FFF_FFFF)) (of_int (Int.and x ox8000_0000)).
Proof.
intros.
set (hi := Int.and x ox8000_0000).
set (lo := Int.and x ox7FFF_FFFF).
assert (R: forall n, integer_representable 53 1024 (Int.signed n)).
{ intros. pose proof (Int.signed_range n).
apply integer_representable_n. smart_omega. }
unfold sub, of_int. rewrite BofZ_minus by auto. unfold of_intu. f_equal.
assert (E: Int.add hi lo = x).
{ unfold hi, lo. rewrite Int.add_is_or.
- rewrite <- Int.and_or_distrib. apply Int.and_mone.
- rewrite Int.and_assoc. rewrite (Int.and_commut ox8000_0000). rewrite Int.and_assoc.
change (Int.and ox7FFF_FFFF ox8000_0000) with Int.zero. rewrite ! Int.and_zero; auto.
}
assert (RNG: 0 <= Int.unsigned lo < two_p 31).
{ unfold lo. change ox7FFF_FFFF with (Int.repr (two_p 31 - 1)). rewrite <- Int.zero_ext_and by lia.
apply Int.zero_ext_range. compute_this Int.zwordsize. lia. }
assert (B: forall i, 0 <= i < Int.zwordsize -> Int.testbit ox8000_0000 i = if zeq i 31 then true else false).
{ intros; unfold Int.testbit. change (Int.unsigned ox8000_0000) with (2^31).
destruct (zeq i 31). subst i; auto. apply Z.pow2_bits_false; auto. }
assert (EITHER: hi = Int.zero \/ hi = ox8000_0000).
{ unfold hi; destruct (Int.testbit x 31) eqn:B31; [right|left];
Int.bit_solve; rewrite B by auto.
- destruct (zeq i 31). subst i; rewrite B31; auto. apply andb_false_r.
- destruct (zeq i 31). subst i; rewrite B31; auto. apply andb_false_r.
}
assert (SU: - Int.signed hi = Int.unsigned hi).
{ destruct EITHER as [EQ|EQ]; rewrite EQ; reflexivity. }
unfold Z.sub; rewrite SU, <- E.
unfold Int.add; rewrite Int.unsigned_repr, Int.signed_eq_unsigned. lia.
- assert (Int.max_signed = two_p 31 - 1) by reflexivity. lia.
- assert (Int.unsigned hi = 0 \/ Int.unsigned hi = two_p 31)
by (destruct EITHER as [EQ|EQ]; rewrite EQ; [left|right]; reflexivity).
assert (Int.max_unsigned = two_p 31 + two_p 31 - 1) by reflexivity.
lia.
Qed.

When AI writes paper proofs, there are trust issues
But when it writes computer proofs, we can mechanistically check them
Untrusted proof search + trusted verifier = ❤️

forall x such that x is a

∀ (x: ℕ) (P : ℕ -> Prop), P(x) ->

AI and Computer Proofs:

A Match Made in Heaven

There are many ways to marry AI and proofs

But first...

In this talk we'll go over just a few of them

In particular, not many LLMs!
And not even all AI!

What does it mean to prove software correct?

Specifications!

(mathematical statements describing the behavior of the program on all valid inputs)

∀ x, ...

1. Structuring Proofs

For the rest of this talk we'll cover three stages of proof writing that AI can assist

2. Synthesizing Steps

3. Searching for QED

1. Structuring Proofs

2. Synthesizing Steps

3. Searching for QED

Proof

Specification

forall (L: List T),

sorted(isort(L)) AND

length(isort(L)) = length(L) AND

elements(isort(L)) = elements(L)

Like other proofs, computer proofs need decomposition

Proof

Specification

forall (L: List T),

sorted(isort(L)) AND

length(isort(L)) = length(L) AND

elements(isort(L)) = elements(L)

Like other proofs, computer proofs need decomposition

forall (L: List T) (x: T),
length([x] + L) = length(L) + 1

Proof

Specification

forall (L: List T),

sorted(isort(L)) AND

length(isort(L)) = length(L) AND

elements(isort(L)) = elements(L)

Helper Lemmas

Like other proofs, computer proofs need decomposition

forall (L: List T) (x: T),

sorted(L) ->

sorted(sinsert(x, L))

forall (L: List T) (x: T),
length([x] + L) = length(L) + 1

Helper Lemmas Are Everywhere

In the CompCert verified compiler

~1 top-level correctness theorem

6257 other lemmas and theorems

∀ x, ...

Program

Specification

Lemma Synthesis

∀ x, ...

Lemma Synthesis - Prior Work

Term Rewriting

Enumeration

Isaplanner, Rippling

Quickspec, Hipspec

Goal Directed

Limited Expressiveness

Expressive

Undirected

Most common prior approach,

Generalization: 20%

[1] Sivaraman, Aishwarya, Alex, Sanchez-Stern, Bretton, Chen, Sorin, Lerner, and Millstein Todd. "Data-Driven Lemma Synthesis for Interactive Proofs." . In Object-Oriented Programming, Systems, Languages & Applications. ACM SIGPLAN, 2022

Lemma Synthesis - LFind

LFind

65% Success Rate

~~~

~

Theorem

Partial Proof

∀ x, ...

Helper Lemmas

∀ x, ...

Stuck Goal

rev

=

a :: x

(

rev x

++

(a :: nil)

)

Generalize

Stuck Goal

...

=

.....

rev

(

.....

y

++

.....

z

)

rev

=

a :: x

(

rev x

++

(a :: nil)

)

Generalize

Synthesize

Stuck Goal

...

=

.....

rev

(

.....

y

++

.....

z

rev

=

a :: x

(

rev x

++

(a :: nil)

)

.....

rev

(

.....

y

++

.....

z

)

=

(rev z) ++ (rev y)

Generalize

Synthesize

Filter

Stuck Goal

...

=

.....

rev

(

.....

y

++

.....

z

)

(rev z) ++ (rev y)

.....

rev

(

.....

y

++

.....

z

)

=

.....

rev

(

.....

y

++

.....

z

)

=

(rev z) ++ (rev y)

rev

a :: x

(

rev x

++

(a :: nil)

)

=

Generalize

Synthesize

Filter

Rank

Candidate

Lemmas

Stuck Goal

...

1.

...

rev (y ++ z)

= (rev z) ++ (rev y)

1.

2.

3.

∀ x, ...

rev

a :: x

(

rev x

++

(a :: nil)

)

=

.....

rev

(

.....

y

++

.....

z

)

=

.....

rev

(

.....

y

++

.....

z

)

=

(rev z) ++ (rev y)

(rev z) ++ (rev y)

.....

rev

(

.....

y

++

.....

z

)

=

1. Structuring Proofs

2. Synthesizing Steps

3. Searching for QED

1. Structuring Proofs

2. Synthesizing Steps

3. Searching for QED

“forall (n: nat), (S n) > n” ?

induction n.

"1 > 0"?

reflexivity.

auto.

“forall (n: nat), (S n) > n” ?

?

...

Proof Contexts

Actions

1.23

2.34

3.45

4.56

1.23

2.34

3.45

4.56

≠

forall (n: nat),

(S n) > n

induction n.

forall (n: nat), (S n) > n.

induction n.

Rango

Kyle Thompson, Nuno Saavedra, Pedro Carrott, Kevin Fisher, Alex Sanchez-Stern, Yuriy Brun, Joao F Ferreira, Sorin Lerner, Emily First. To appear in ICSE 2025

forall (n: nat), (S n) > n.

induction n.

Input (Proof Context)

Output (Proof Step)

forall (n: nat), (S n) > n.

induction n.

[1] Alex Sanchez-Stern, Yousef Alhessi, Lawrence Saul, and Sorin Lerner. "Generating Correctness Proofs with Neural Networks." . In Machine Learning in Programming Languages. ACM SIGPLAN, 2020.

Input (Proof Context)

Output (Proof Step)

{

Command

Argument

forall (n: nat), (S n) > n.

induction n.

[1] Alex Sanchez-Stern, Emily First, Timothy Zhou, Zhanna Kaufman, Yuriy Brun, and Talia Ringer. "Passport: Improving Automated Formal Verification Using Identifiers." (2022).

Input (Proof Context)

Output (Proof Step)

{

Command

Argument

Identifier Embeddings
